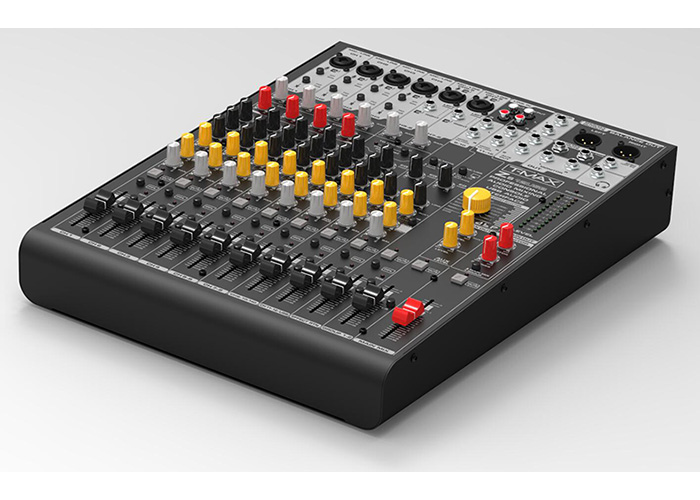

Pro Audio Mixing Console/USB Interface/HDMI <DIV>FEATURES</DIV><DIV>12-Channel Mixing Console</DIV><DIV>Max. 6 Mic18 Line Inputs (6 mono + 4stereo)</DIV><DIV>1 Stereo Bus</DIV><DIV>1 AUX (incl. FX)</DIV><DIV>"D-PRE" mic preamps with an inverted Darlington circuit</DIV><DIV>1-Knob compressors</DIV><DIV>High-grade effects: SPX with 24 programs</DIV><DIV>24-bit/ 192kHz/(16Bit/48kHz) 2in/ 2out USB Audio functions</DIV><DIV>Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit 1</DIV><DIV>Lightning to USB Adapter</DIV><DIV>HDMI input/output</DIV><DIV>PAD switch on mono inputs</DIV><DIV>o+48V phantom power</DIV><DIV>XLR balanced outputs</DIV><DIV>Meta! chassis</DIV><DIV>Dimensions(WxHxD); 428*315*90 mm/428*483*90mm</DIV><DIV>Net Weight: 5.5kg</DIV><DIV> </DIV><DIV> </DIV><DIV> </DIV><DIV> </DIV><DIV>DES.&SPECIFICATIONS</DIV><DIV>Frequency Response:20 Hz-22000 kHz</DIV><DIV>Power Supply:Internal</DIV><DIV>Voltage Requirements:100V- 240 V</DIV><DIV>Power Consumption(W):50 W</DIV><DIV>Gain Range:0dB -50dB</DIV><DIV>Gain Selection:15 dB- 35 dB</DIV><DIV>Mic Inputs Impedance:2 kohm</DIV><DIV>Line Impedance:10 kohm</DIV><DIV>L OW Cut:75 Hz</DIV><DIV>Phantom Power +48V:Yes</DIV><DIV>Main Out Impedance:120 ohm</DIV><DIV>Main Out Level:22 dBu</DIV><DIV>Aux Out Impedance:120 ohm</DIV><DIV>Aux Out Level:16 dBu</DIV><DIV>Dimensions(WxHxD):428*315*90 mm/428*483*90mm</DIV><DIV>Net Weight:5.5kg</DIV>
|
